Ring Lock System
Ring Lock System

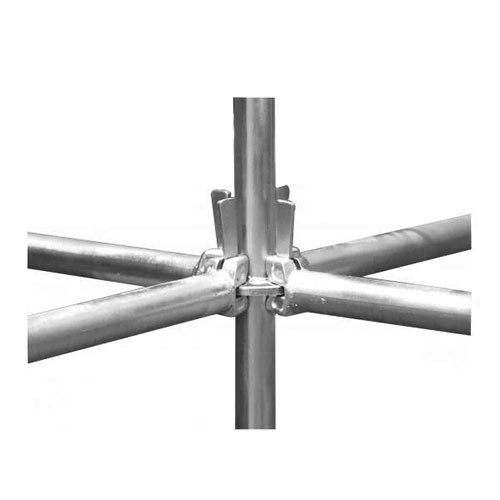

Ringlock system of scaffolding is used where faster assembly is required. Ringlock system is made of three parts mainly- verticals, horizontals and diagonals. Verticals are termed as standards, horizontals are named as ledgers and diagonals are named as braces.All these parts are joined together using a ring called rosette to make a bay. This whole system is called as modular system. Each rosette can have upto 8 connections.
Ringlock System Parts

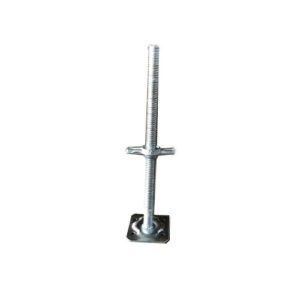

Base Jack –
Transmits load on the ground and maintains level at all the Verticals so that platform is stable. The height adjustment is achieved with movement of nut.
Size used with Ringlock System –
38 x 4 x 610 mm
Wt – 3.29 kg

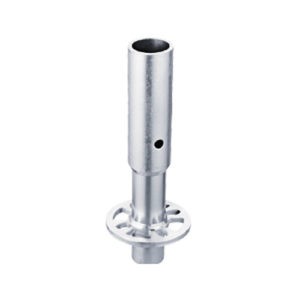

Base Collar –
– It Ensures that connection between the ledger and standards are at right angle and they are correctly aligned.
Size used with Base Collar –
Size – 330 mm
Weight – 2.3 Kgs
Size – 290 mm
Weight – 2.21 Kgs

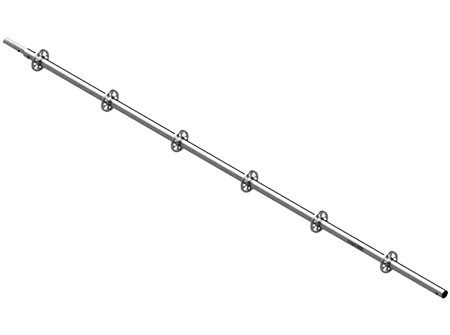

Standard/Vertical
It transmits load from top through verticals to the base. It has Ring Rosettes welded at every 500 mm gap. The ledgers and diagnol connections are made at these ring rosette points.
| Item Code | Size Of Vertical | Pipe Size | Weight |
|---|---|---|---|
| SE-RLS -01 | Vertical 500 mm | 48.3×3.2 | 2.9 |
| SE-RLS – 02 | Vertical 1000 mm | 48.3×3.2 | 5.4 |
| SE-RLS – 03 | Vertical 1500 mm | 48.3×3.2 | 7.8 |
| SE-RLS – 04 | Vertical 2000 mm | 48.3×3.2 | 10.2 |
| SE-RLS – 05 | Vertical 2500 mm | 48.3×3.2 | 12.4 |
| SE-RLS – 06 | Vertical 3000 mm | 48.3×3.2 | 15.02 |
Ledgers / Horizontal
It is like a structural element that is used to provide structure a support and also works as the deck for the walk boards or planks. It has two heads known as ledger ends which help to connect with rosettes on the vertical.
| Item Code | Size Of Ledger | Pipe Size | Weight |
|---|---|---|---|
| SE-RLL – 01 | Ledger 0.610 m | 48.3×3.2 | 2.89 |
| SE-RLL – 02 | Ledger 0.732 m | 48.3×3.2 | 3.34 |
| SE-RLL – 03 | Ledger 0.910 m | 48.3×3.2 | 4.06 |
| SE-RLL – 04 | Ledger 1.040 m | 48.3×3.2 | 4.55 |
| SE-RLL – 05 | Ledger 1.222 m | 48.3×3.2 | 5.22 |
| SE-RLL – 06 | Ledger 1.400 m | 48.3×3.2 | 5.95 |
| SE-RLL – 07 | Ledger 1.520 m | 48.3×3.2 | 6.4 |
| SE-RLL – 08 | Ledger 1.572 m | 48.3×3.2 | 6.58 |
| SE-RLL – 09 | Ledger 1.830 m | 48.3×3.2 | 7.57 |
| SE-RLL – 10 | Ledger 2.072 m | 48.3×3.2 | 8.5 |
| Item Code | Size Of Ledger | Pipe Size | Weight |
|---|---|---|---|
| SE-RLL – 11 | Ledger 2.130 m | 48.3×3.2 | 8.74 |
| SE-RLL – 12 | Ledger 2.572 m | 48.3×3.2 | 10.42 |
| SE-RLL – 13 | Ledger 2.740 m | 48.3×3.2 | 11.05 |
| SE-RLL – 14 | Ledger 3.072 m | 48.3×3.2 | 12.34 |

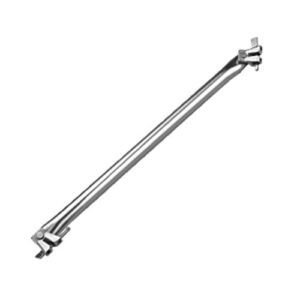

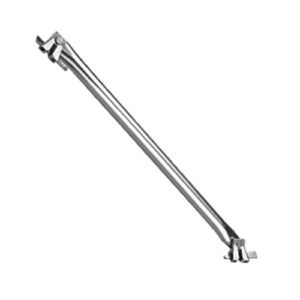

Diagnols or Braces
It provides rigidity to the whole structure. It is usually put on every third bay or as per the wind speed . Standard sizes of the diagnols are as follows.
| Item Code | Size Of Diagnol Width x Height | Pipe Size | Weight |
|---|---|---|---|
| SE-RLB – 01 | Diagnol 0.73 x 2.0 m | 48.3×3.2 | 3.9 |
| SE-RLB – 02 | Diagnol 0.91 x 2.0 m | 48.3×3.2 | 4.9 |
| Item Code | Size Of Diagnol Width x Height | Pipe Size | Weight |
|---|---|---|---|
| SE-RLB – 03 | Diagnol 1.04 x 2.0 m | 48.3×3.2 | 5.7 |
| SE-RLB – 04 | Diagnol 1.22 x 2.0 m | 48.3×3.2 | 6.6 |
| SE-RLB – 05 | Diagnol 1.44 x 2.0 m | 48.3×3.2 | 7.8 |
| SE-RLB – 06 | Diagnol 1.52 x 2.0 m | 48.3×3.2 | 8.3 |
| SE-RLB – 07 | Diagnol 1.572 x 2.0 m | 48.3×3.2 | 8.5 |
| SE-RLB – 08 | Diagnol 1.83 x 2.0 m | 48.3×3.2 | 10 |
| SE-RLB – 09 | Diagnol 2.072 x 2.0 m | 48.3×3.2 | 11.2 |
| SE-RLB – 10 | Diagnol 2.13 x 2.0 m | 48.3×3.2 | 11.7 |
| SE-RLB – 11 | Diagnol 2.572 x 2.0 m | 48.3×3.2 | 14.1 |
| SE-RLB – 12 | Diagnol 3.072 x 2.0 m | 48.3×3.2 | 16.6 |

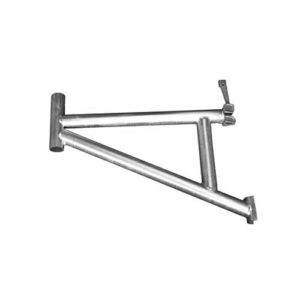

Side Bracket
Side Bracket helps in side extension of the bay towards side where bay erection from the ground is not feasible. It is a safe hang erection and is used with walk boards for working.
| Item Code | Size Of Side Bracket | Pipe Size | Weight |
|---|---|---|---|
| SE-RLSB – 01 | Bracket 0.4 m | 48.3×3.2 | 4.7 |
| SE-RLSB – 02 | Bracket 0.61 m | 48.3×3.2 | 5.9 |
| SE-RLSB – 03 | Bracket 0.92 m | 48.3×3.2 | 9 |
| SE-RLSB – 04 | Bracket 1.15 m | 48.3×3.2 | 9.8 |

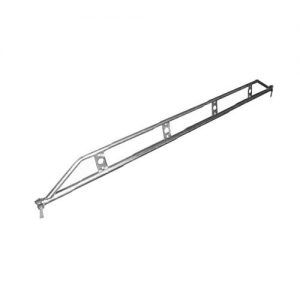

Truss Ledger
It strengthens the bay at long distance gaps in construction site such as the entrance or gate side areas.
| Item Code | Tube Size | Weight |
|---|---|---|
| SE-RTL – 01 | 1572 mm | 9.58 kg |
| SE-RTL – 02 | 2072 mm | 12.78 kg |
| SE-RTL – 03 | 2572 mm | 16.1 kg |
| SE-RTL – 04 | 3072 mm | 19.3 kg |

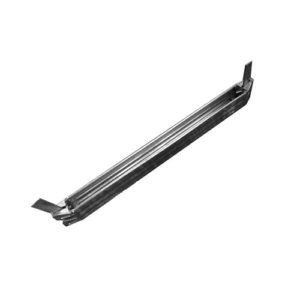

U Transom
It provides intermediary support for walk boards in bay
| Item Code | Tube Size | Weight |
|---|---|---|
| SE-RUT – 01 | 732 mm | 3.18 kg |
Ring lock System Accessories

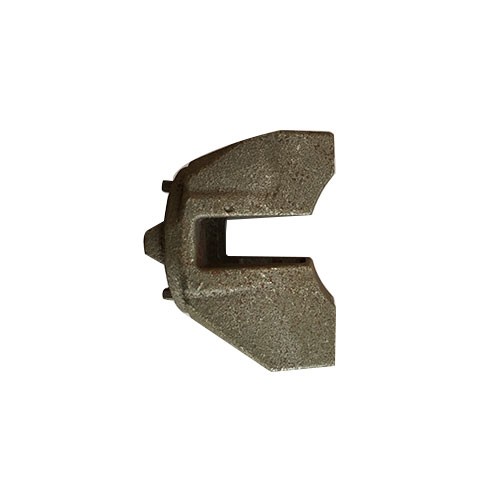

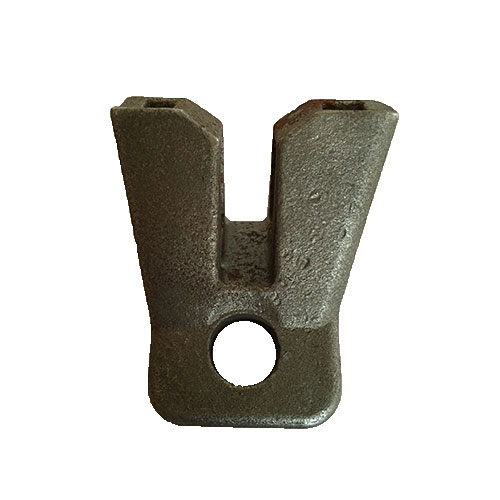

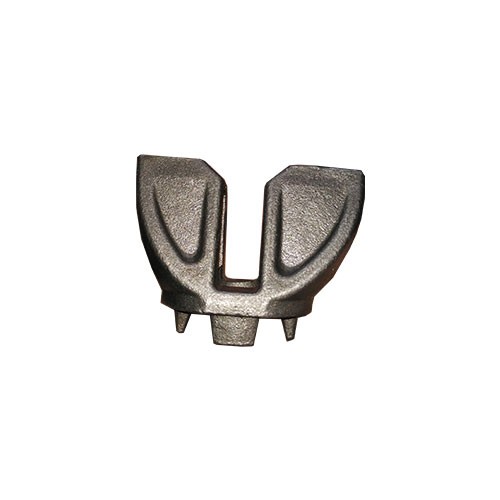

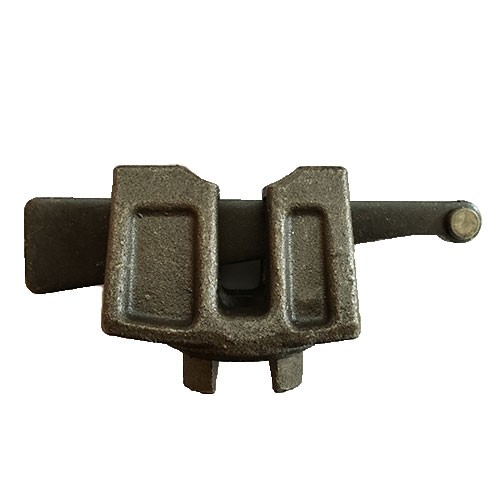

Ledger End
Code- SE-RSA-01
Product Weight- 400 Gm
Ledger End
Code- SE-RSA-02
Product Weight- 490 Gm
Ledger End
Code- SE-RSA-03
Product Weight- 360 Gm

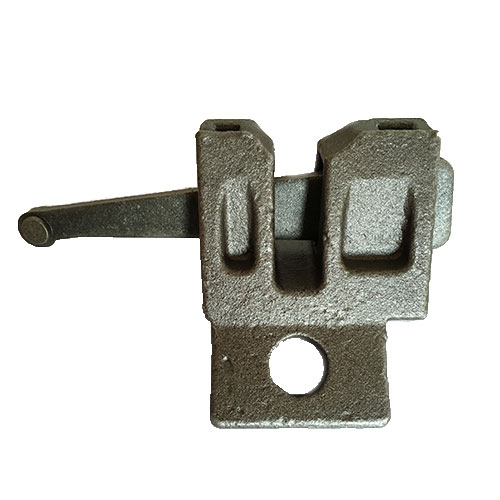

Brace End
Code- SE-RSA-04
Product Weight- 590 Gm
Brace End
Code- SE-RSA-05
Product Weight- 560 Gm

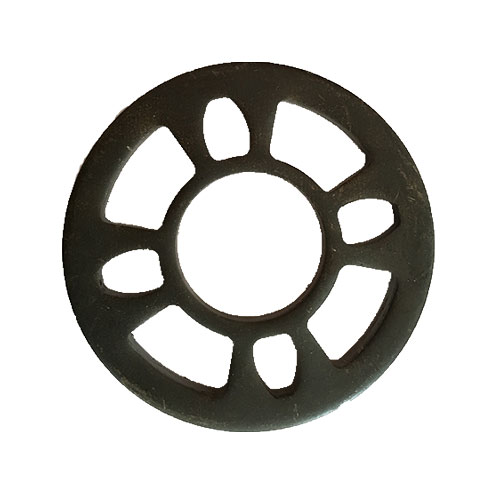

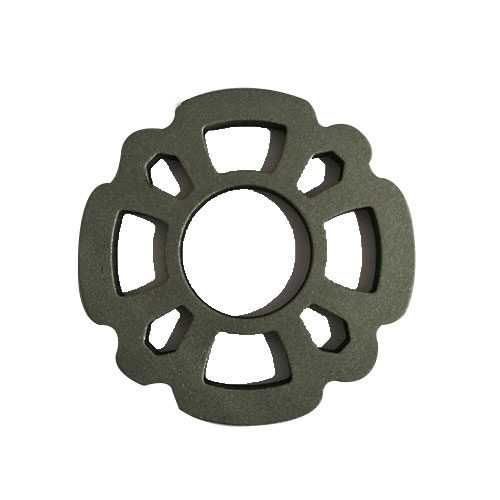

Rosette
Code- SE-RSA-06
Product Weight- 450 Gm
Flower Rosette
Code- SE-RSA-07
Product Weight- 400 Gm

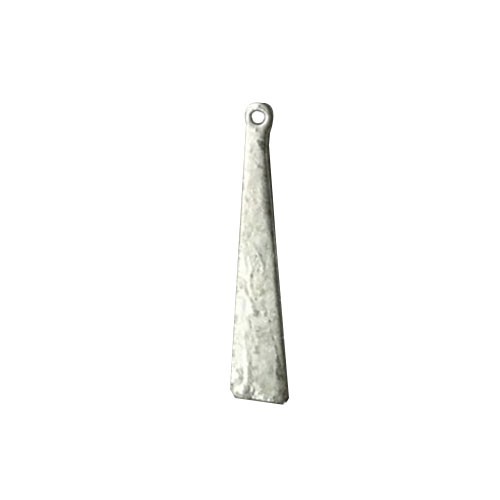

Wedges 1
Code- SE-RSA-08
Product Weight- 115 Gm
Wedges 2
Code- SE-RSA-09
Product Weight- 115 Gm
Walkboards – Please refer detail page for the walk boards.
