Steel Plank
Steel Plank
The Steel Plank is used to form the working platform. The number of Steel Planks used determines the width of the platform. The Steel Planks span the length of the bay and hook onto the supporting Ledger or Transom.
The main features of the Walk board are Optimum strength, stability, durability and traction. The traction is provided by the various designs and grooves cut on the top surface of the planks. The top surface usually has holes which provide traction as well as serve purpose for the water removal as it shall not clog on it.
We manufacture various types of platform for different markets.
Based on material used, steel plank can be categorised into two categories:
- Aluminium Planks
- Steel Planks

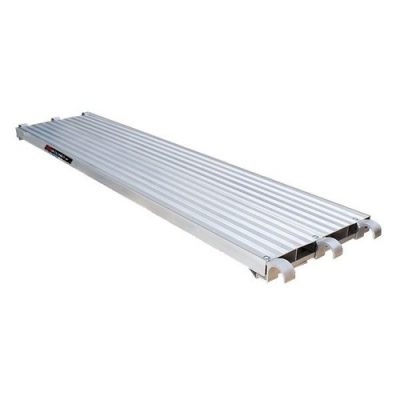

Complete Aluminium Plank
| Item Code | Length | Width | Height | Weight |
|---|---|---|---|---|
| SE-WA – 01 | 3’10” | 489 mm | 53mm | 8.41 kg |
| SE-WA – 02 | 5′ | 489 mm | 53mm | 10.50 kg |
| SE-WA – 03 | 5’2″ | 489 mm | 53mm | 10.89 kg |
| SE-WA – 04 | 7′ | 489 mm | 53mm | 13.60 kg |
| SE-WA – 05 | 8′ | 489 mm | 53mm | 15.50 kg |
| SE-WA – 06 | 10′ | 489 mm | 53mm | 18.80 kg |

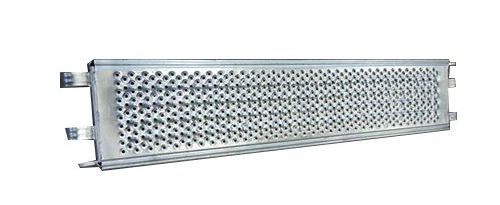

Complete Steel Plank
| Item Code | Length | Width | Height | Weight |
|---|---|---|---|---|
| SE-WS – 13 | 2072 mm | 320 mm | 76 mm | 18.32 Kg |
| SE-WS – 14 | 2572 mm | 320 mm | 76 mm | 21.8 Kg |

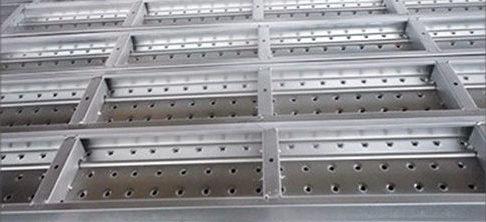

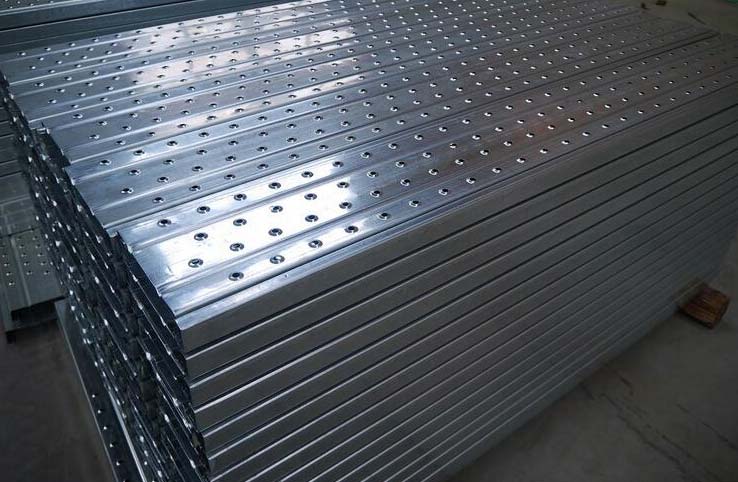

Complete Steel Plank
| Item Code | Length | Width | Height | Weight |
|---|---|---|---|---|
| SE-WS – 15 | 3 m | 225 mm | 38 mm | 15.3 kg |
| SE-WS – 16 | 2 m | 225 mm | 38 mm | 10.3 kg |
| SE-WS – 17 | 1.5 m | 225 mm | 38 mm | 7.8 kg |

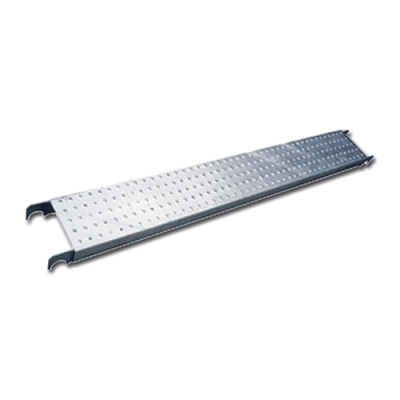

Complete Steel Plank
| Item Code | Length | Width | Height | Weight |
|---|---|---|---|---|
| SE-WS – 07 | 5′ | 230 | 63.5 | 10.32 kg |
| SE-WS – 08 | 6′ | 230 | 63.5 | 11.77 kg |
| SE-WS – 09 | 7′ | 230 | 63.5 | 13.5 kg |
| SE-WS – 10 | 8′ | 230 | 63.5 | 15.9 kg |
| SE-WS – 11 | 9′ | 230 | 63.5 | 17.5 kg |
| SE-WS – 12 | 10′ | 230 | 63.5 | 19.66 kg |

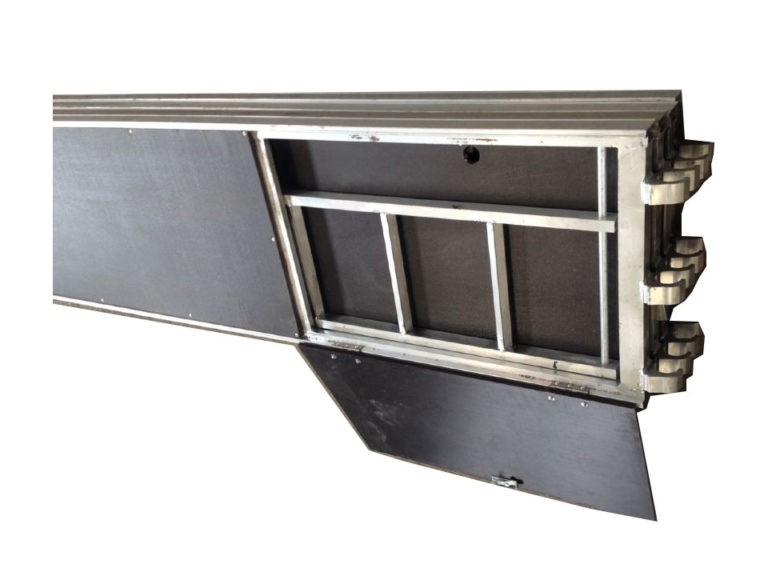

Aluminium with Wooden top and ladder Attached
| Item Code | Length | Width | Height | Weight |
|---|---|---|---|---|
| SE-WA – 01 | 2.072 m | 610mm | Yes | 25.5 |
| SE-WA – 02 | 2.572 m | 610mm | Yes | 26.4 |
